合路器555-2180/2300-2700 MHz
| Part No. | 80286 | |
| 電氣 | ||
| 頻率范圍 (MHz) | Port1 | 555-2180 Or 698-2180 |
| Port2 | 2300-2700 | |
| 插入損耗(dB) | ≤0.4 | |
| 隔離 (dB) | ≥60 | |
| 回損/VSWR | ≤-20dB/1.22 | |
| 互調(diào) (dBc) | ≤-150/155 (with 2×20W) | |
| 阻抗 (Ω) | 50 Ω | |
| 輸入功率 (W) | ≤200 W (avg.) | |
| DC/AISG | By-pass (max. 3000mA) | |
| 防雷保護 | 10KA; 10/350μs pulse | |
| 環(huán)境 | ||
| 工作溫度 | -20°C to +65 °C | |
| 儲存溫度 | -40 °C to +85 °C | |
| 相對濕度 | 5% - 95% | |
| 應用 | 室內(nèi)或室外 (IP67) | |
| 機械 | ||
| 接頭 | 7/16 Female | |
| 包裝 | 1pc /box | |

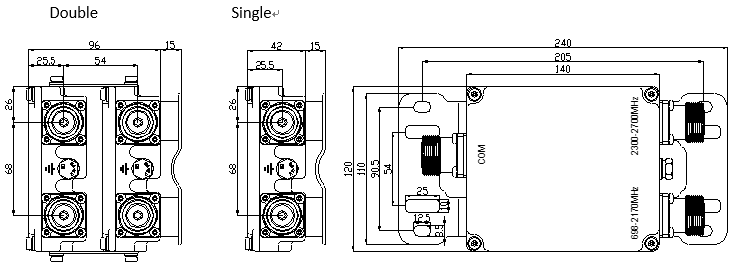

| 代碼 | 類型 | DC pass | 重量 (kg) | 尺寸 (mm) | 接頭 |
| 8028652 | Single | DC pass all | ≤1.2 | 140*120*42 | 7/16 Female |
| 8028654 | Double | DC pass all | ≤2.5 | 140*120*96 | 7/16 Female |
